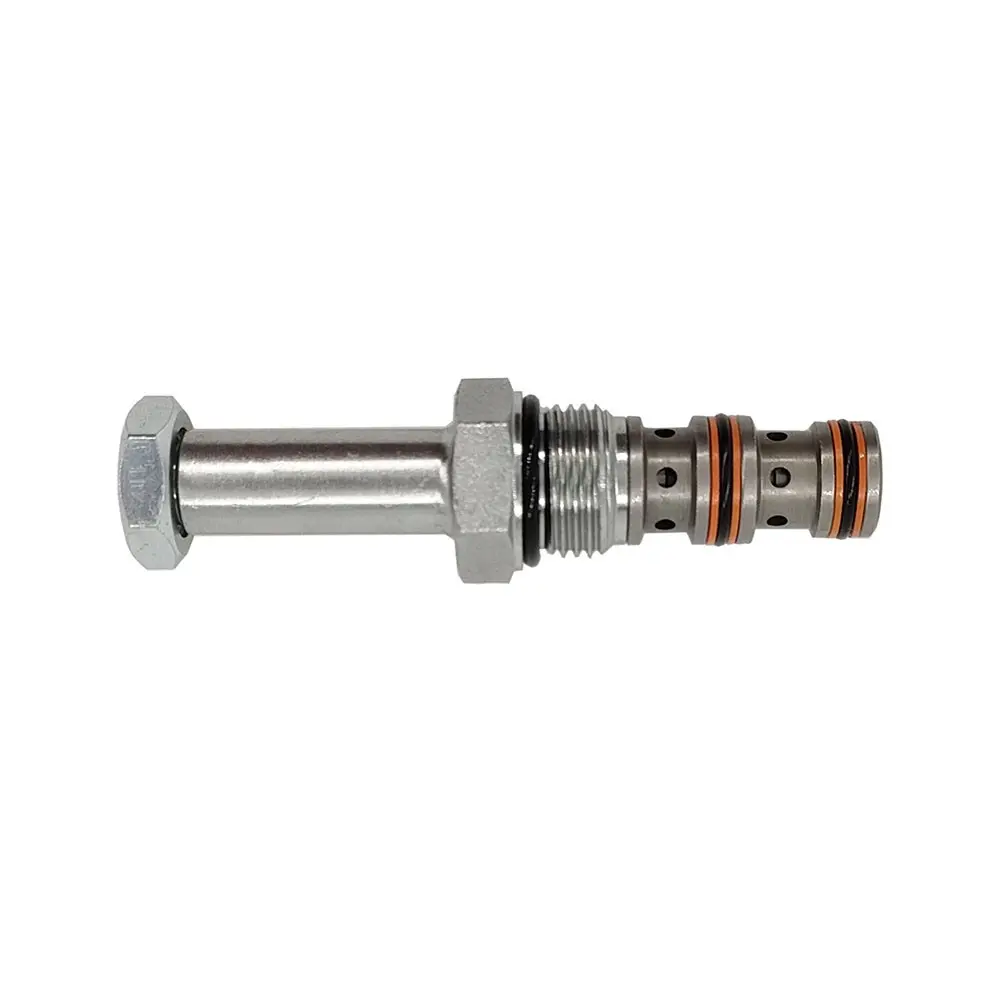

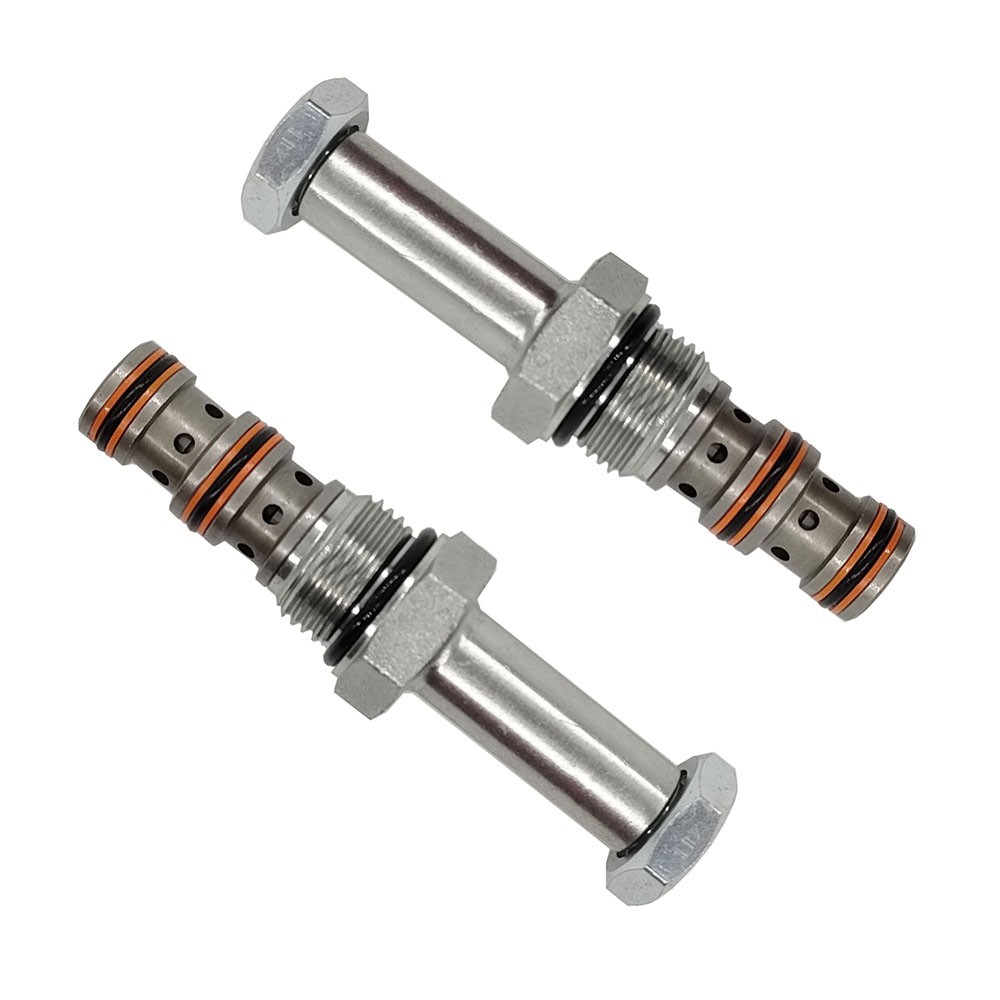

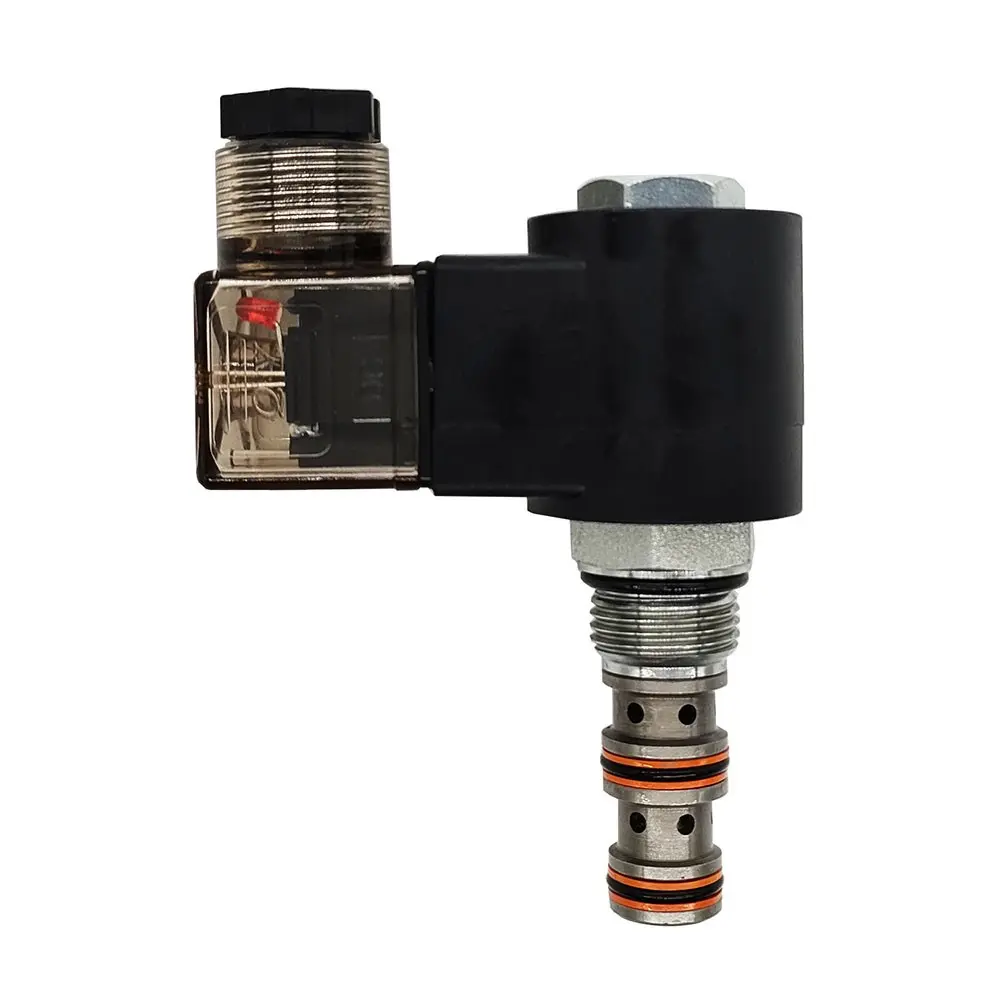

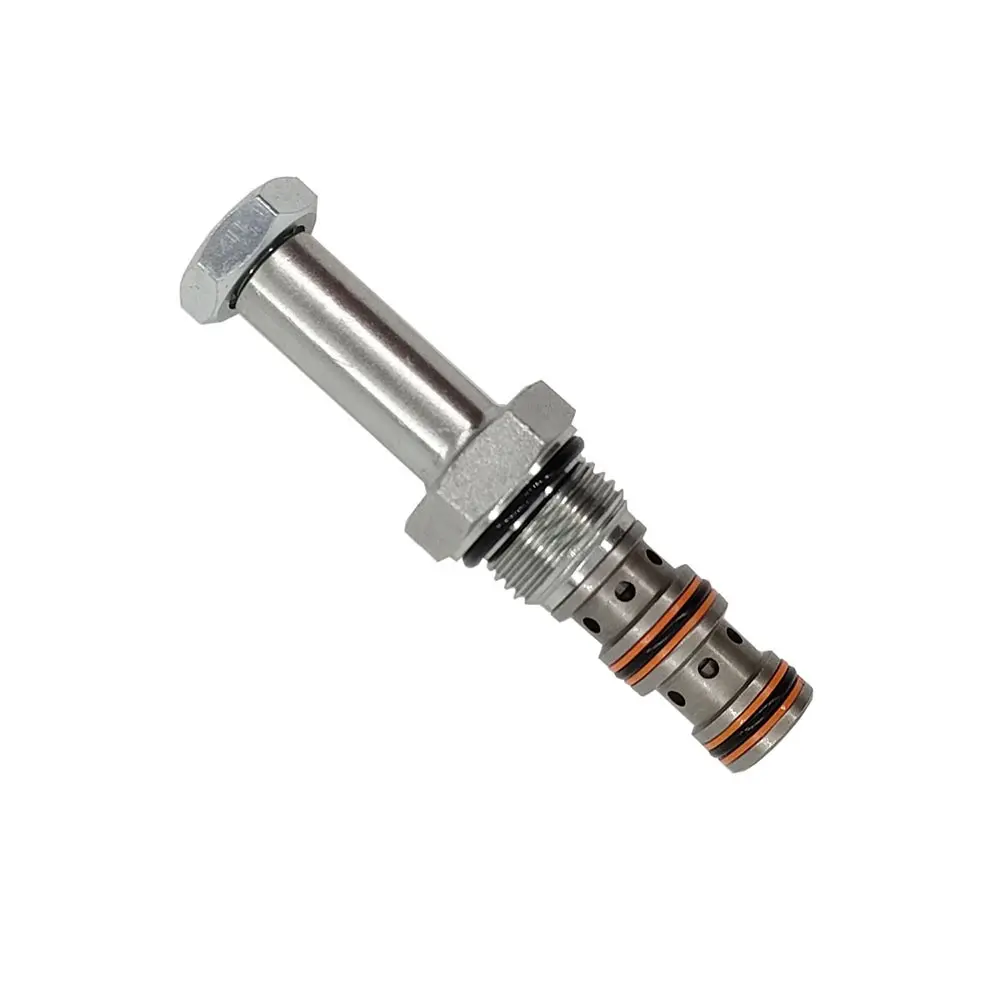

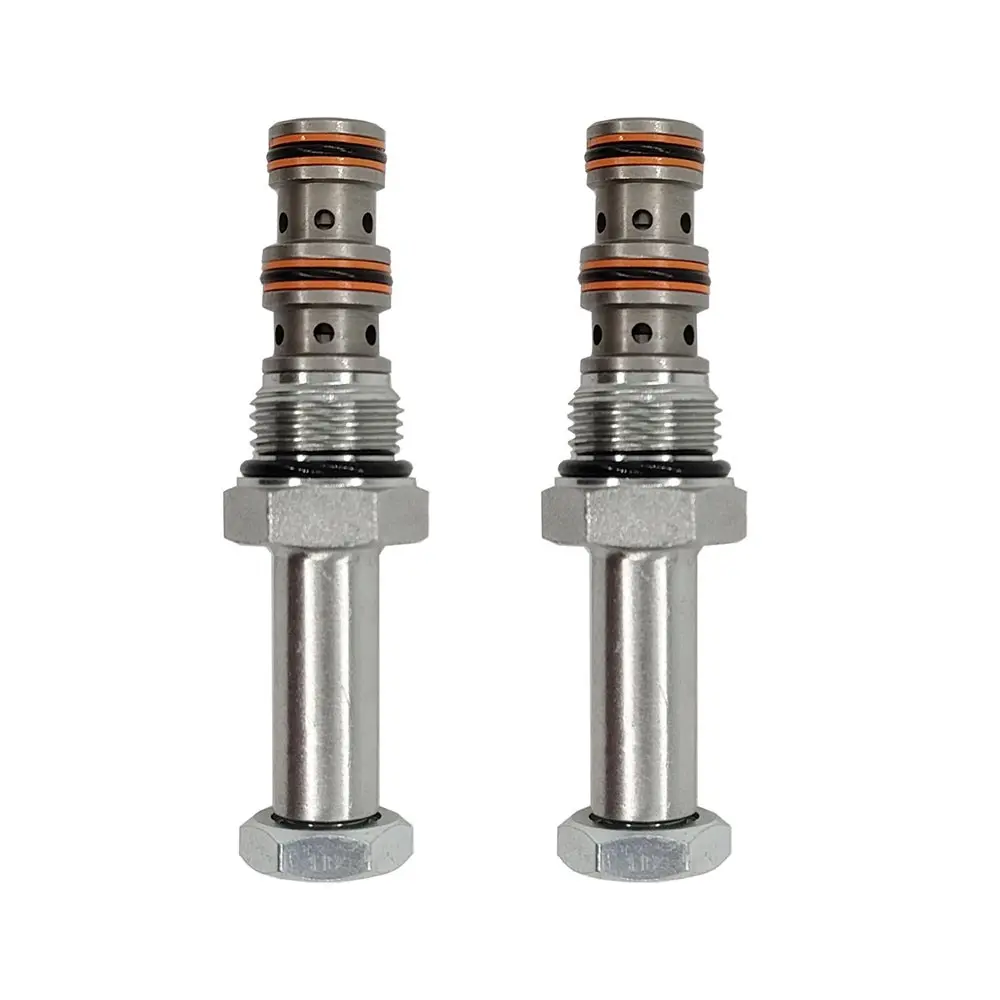

LSV08-230 three-position four-way solenoid valve

Description
An electromagnetic-operated 3-way, normally closed, poppet valve spool type, screw-in hydraulic cartridge valve, equipped with standard and manual override options. This valve is intended to serve as a blocking or load-holding device for low-flow circuits, featuring a manual override requirement that merely involves pulling the handle or cable linkage.

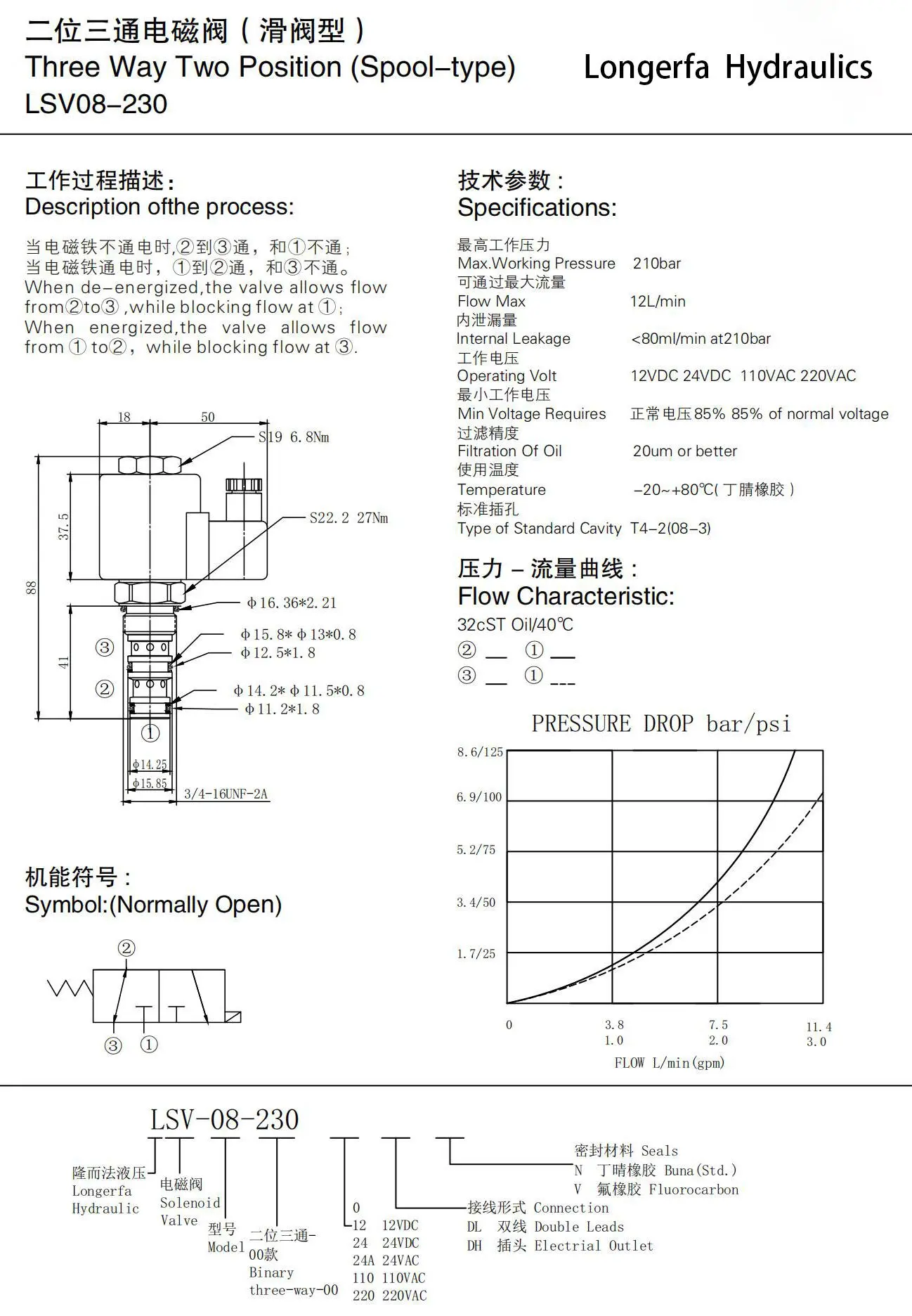

Operation
When de-energized,the valve allows flow from 2 to 3 ,while blocking flow at 1；When energized,the valve allows flowfrom 1 to 2,while blocking flow at 3

Features
*Continuous load-rated coil.
*Hardened valve seat for long service life and low leakage.
*Optional coil voltages and terminations.
*Cartridge interchangeable with voltage.
*Unitized, molded coil design.
*Manual override option.
*Universal industrial cavity.
*Compact volume.
